Fitting Fluidyne radiator

[Thorin]

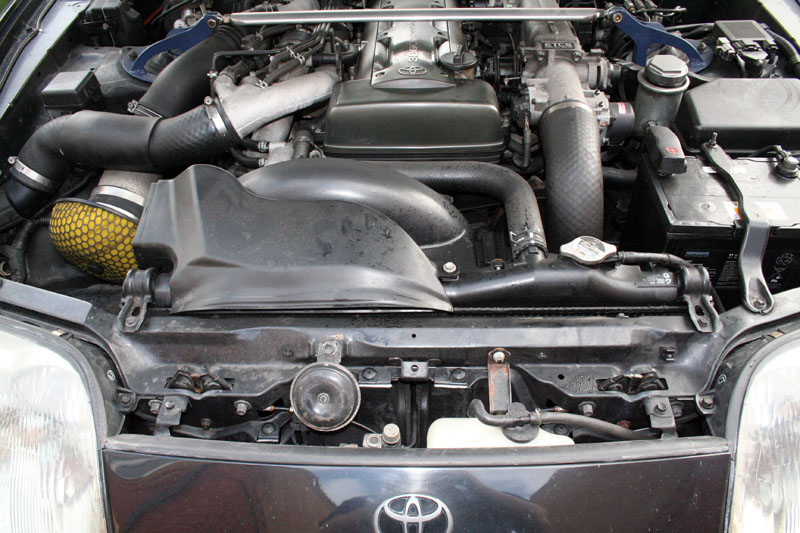

Fitting a Fluidyne Radiator



You will need :



1 MKIV Supra with cracked radiator

1 Shiney new Fluidyne rad

10 litres of Toyota 4Life (2 x 5 litres)

Possibly new top and bottom rad hoses if yours are in a bad state



If you have an auto, the stock rad contains an auto box cooler and you will need a separate one if fitting the Fluidyne. I have a manual so these instructions do not cover this.



Tools required :



Jack

Axle stands

10mm Socket

20mm (?) spanner

Snips

Plumbers/PTFE tape

A bucket

A sharp knife

1 Bottle of Powerade

1 Plaster

1 Bag of Haribo



Time taken : er, longer than it should have done. If you know what you're doing certainly less than an hour.



------------------------------------------------



Upon mentioning mine it seems a few people have suffered from cracked radiators now, you can just make out the hairline crack running horizontally here. It's lasted 12 years and 80k miles though, so it's not done too badly.

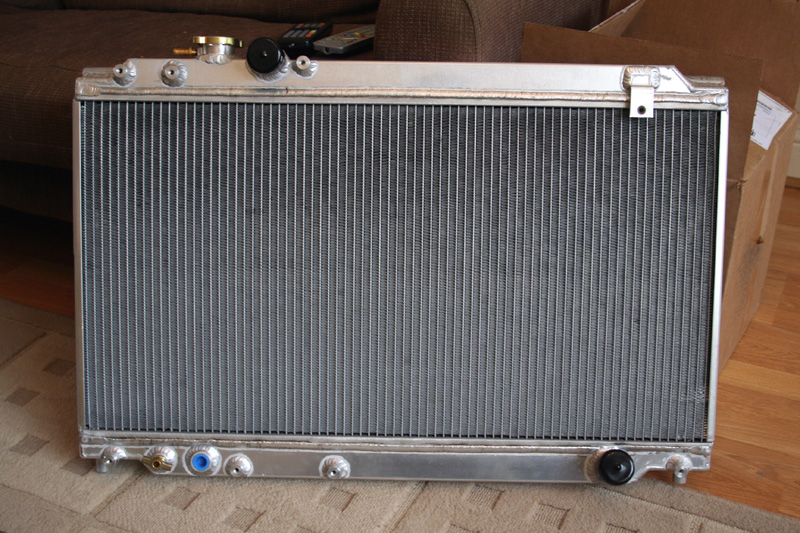

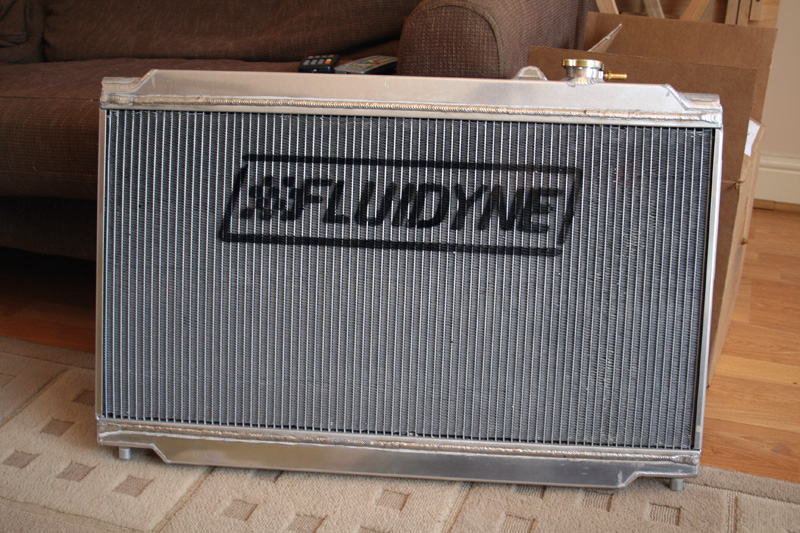

So I bought a nice new shiney Fluidyne rad to replace it. Let me just state this - the stock one is excellent, will fit better (read later on refitting the shroud), and is perfectly fine as long as you're not going to ruin airflow to it by sticking an FMIC in front. However, the Fluidyne rad is about the same price as a new stock rad, doesn't have plastic end caps, and did I mention it's shiney?











Right, let's try and fit it.

[Thorin]

Drain and remove the old radiator



Jack the car up and put the car on axle stands.

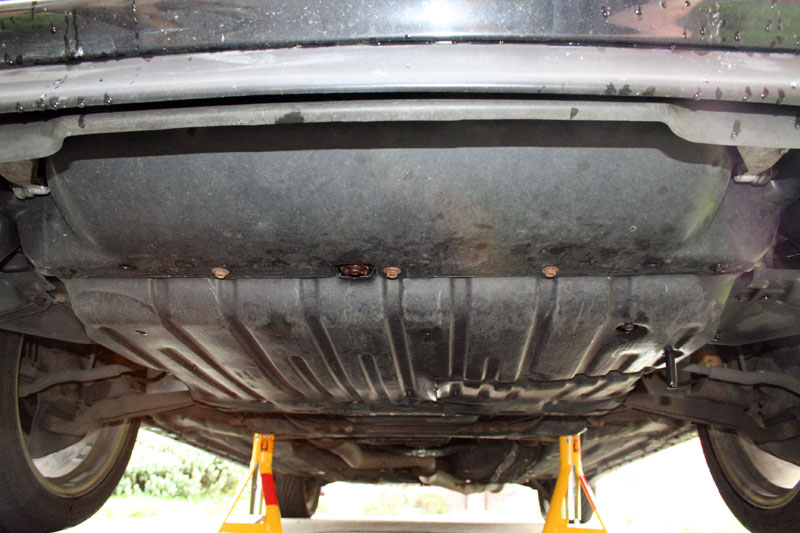

First get under the car and remove the undertray. I removed the bolts from along the edge of the front plastic bit to make it easier to slide the undertray out (and back in again when you're done).

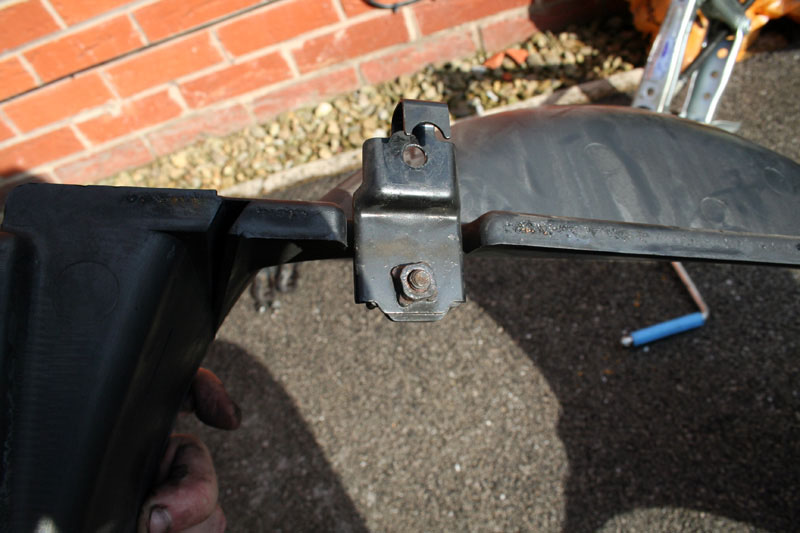

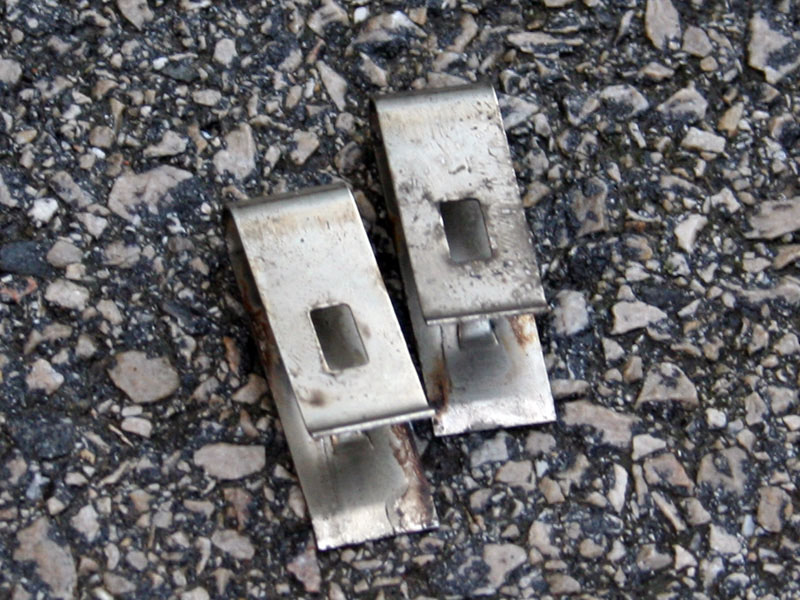

While you're under there remove the metal clips from the bottom section of the fan shroud, they are at about the 4 & 8 o'clock positions. You may be able to get at these from the top (certainly the drivers side one), but I found it easier from underneath. There's no need to remove this section, just rest it on top of the intake pipe coming from the intercooler.

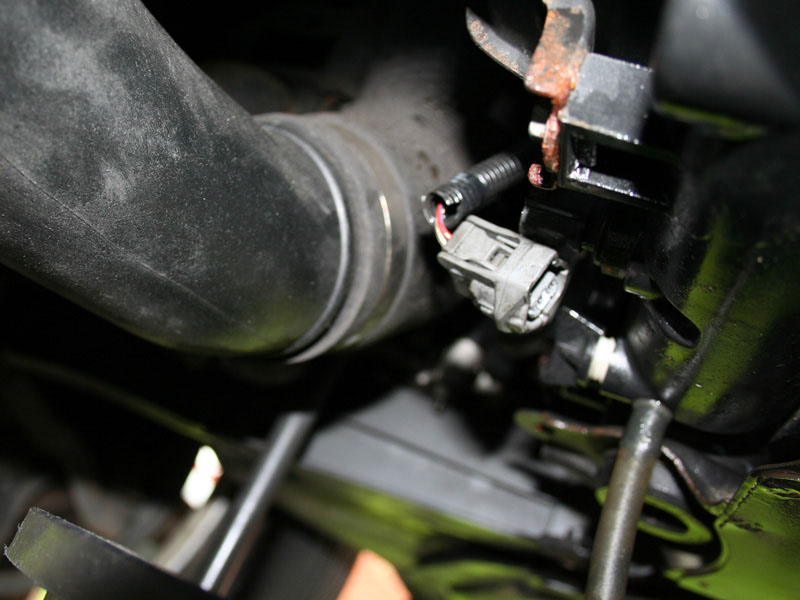

You'll also need to unplug the temperature sensor connector on the back of the rad just above the drain tap (passenger side).





Next stick a bucket under the little rubber pipe and undo the tap to drain the radiator while you're unbolting bits up top. Take the rad cap off and it will drain faster.



I don't have the stock airbox but did still have the top air duct in place. You have to remove this as it won't fit back on when the new rad is in, not that I suspect it was still doing any good without the stock airbox there anyway.





Remove the small overflow pipe next to the rad cap, and remove the top radiator hose.

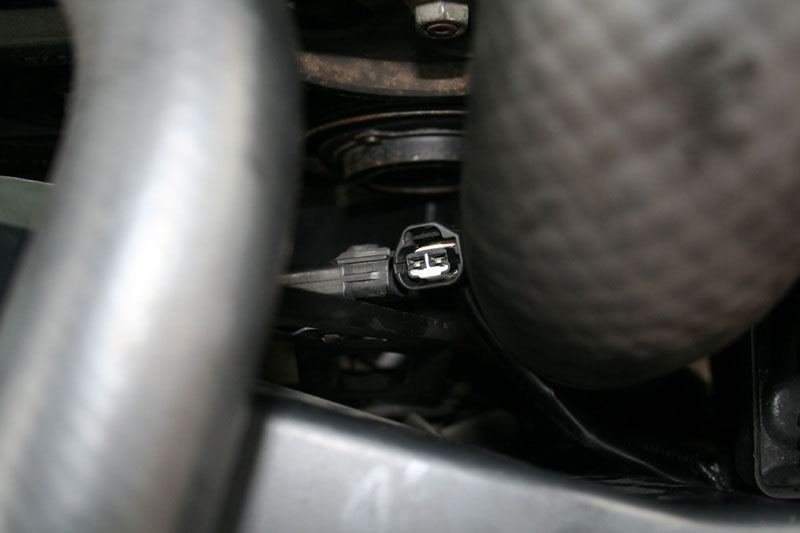

Remove the plug for the fan, look down the back of the radiator where the rad cap is and you'll see it. I found this a bastard to get off.





Next you'll notice the cable for the two plugs is clipped into the plastic fan shroud, once near the top, and again near the bottom (you'll probably want to get at this one from underneath). Again these are awkward to get out. I managed to get the top one unclipped ok but the bottom one I cracked the plastic a bit, still clipped back in ok though.



You can now pull up and move the cable and the small overflow pipe out of the way to the right of the battery clamp.



Now just remove the two radiator clamps either side of the rad on the top.

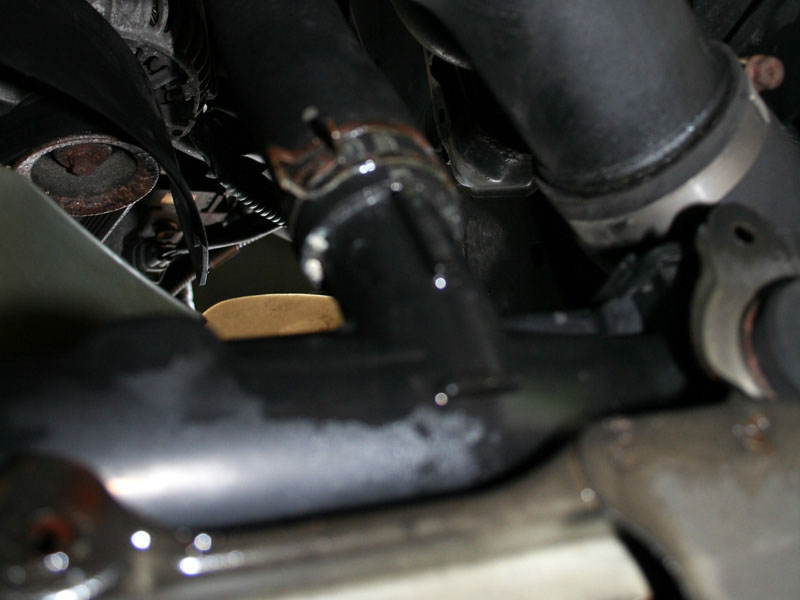

Once the radiator has fully drained, get back underneath and disconnect the bottom rad hose (drivers side of rad).

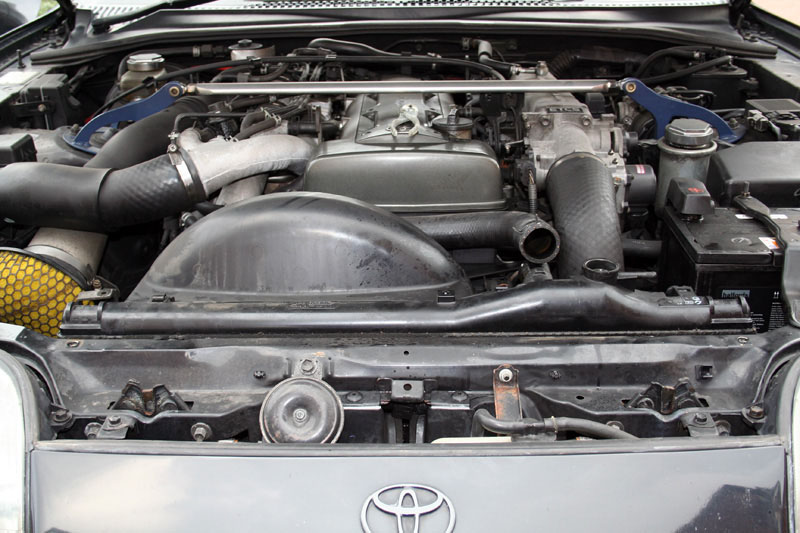

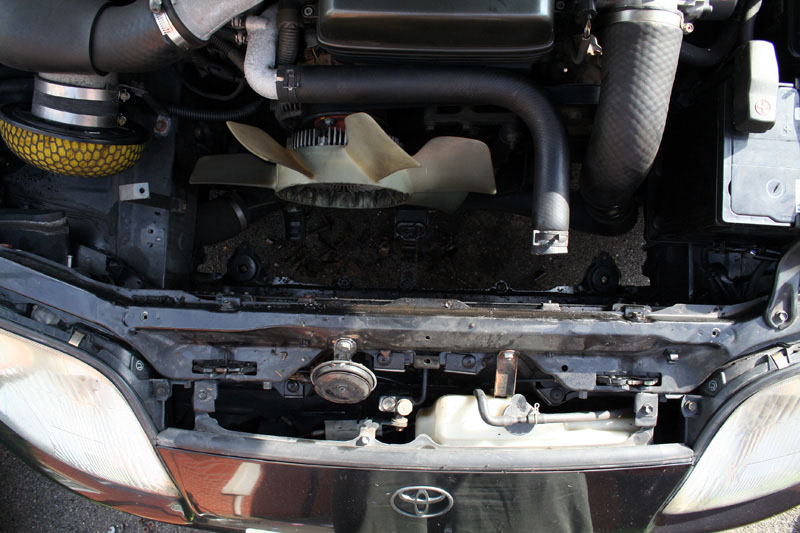

You should now find that the rad will just lift right out with the fan shroud still attached.



As I've had to remove the air duct, there's no need for the bracket at the left hand side it bolts to either, I don't know if thats still needed with the stock airbox. I removed that now as well.

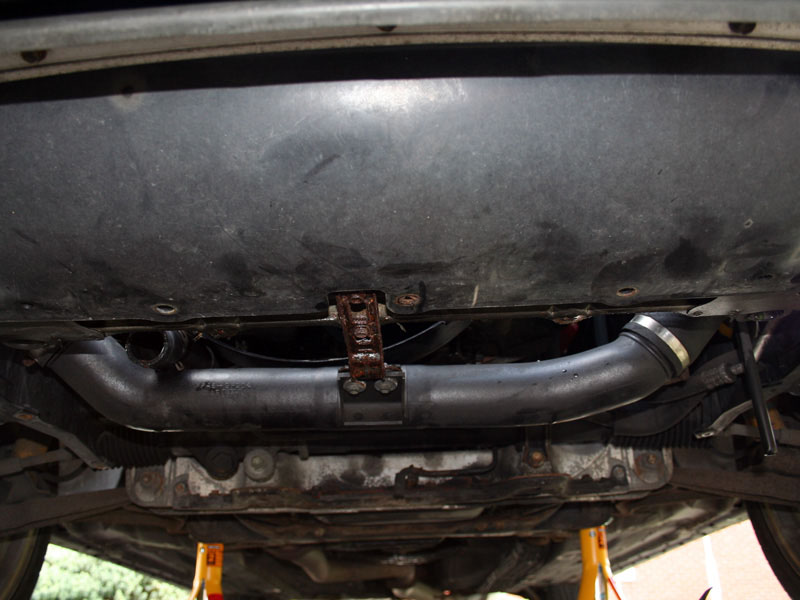

Here's from underneath, you can just see the bottom section of the fan shroud resting on the intake pipe.



[Thorin]

Fitting the new radiator

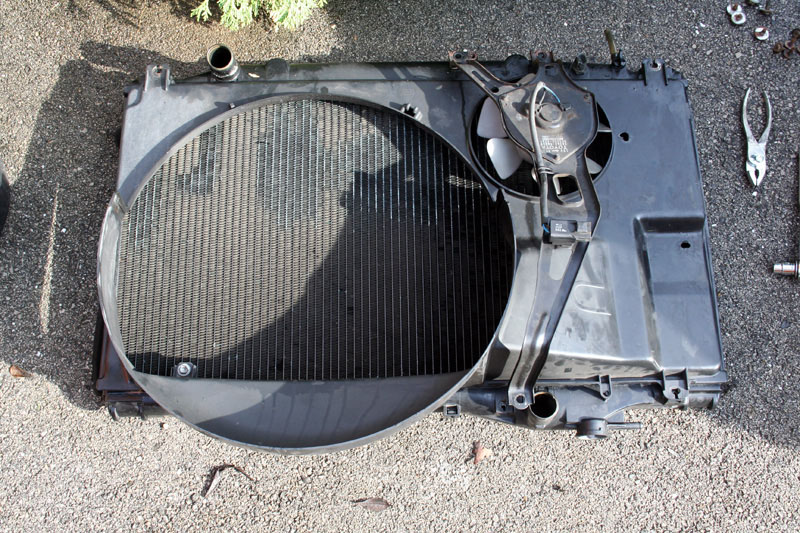

First unbolt the fan and shroud from the old rad.





Note the little bracket at the top of the shroud, remove this as there's nowhere for it to clip into on the Fluidyne.

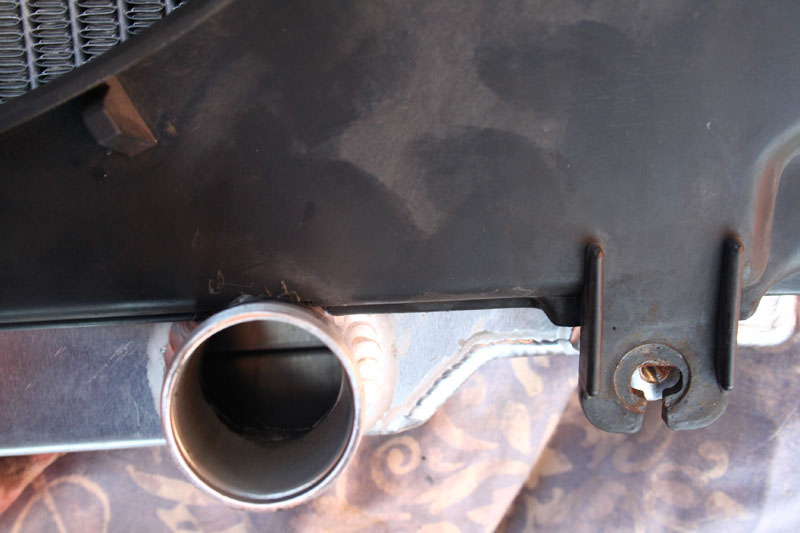

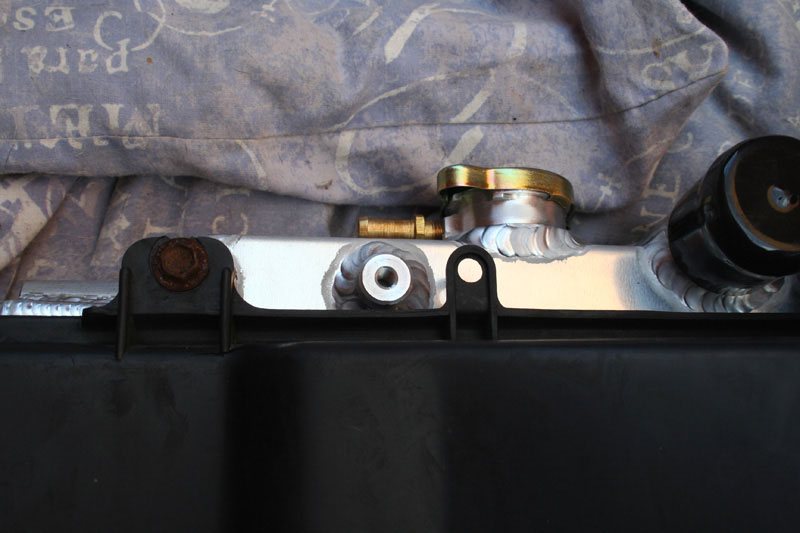

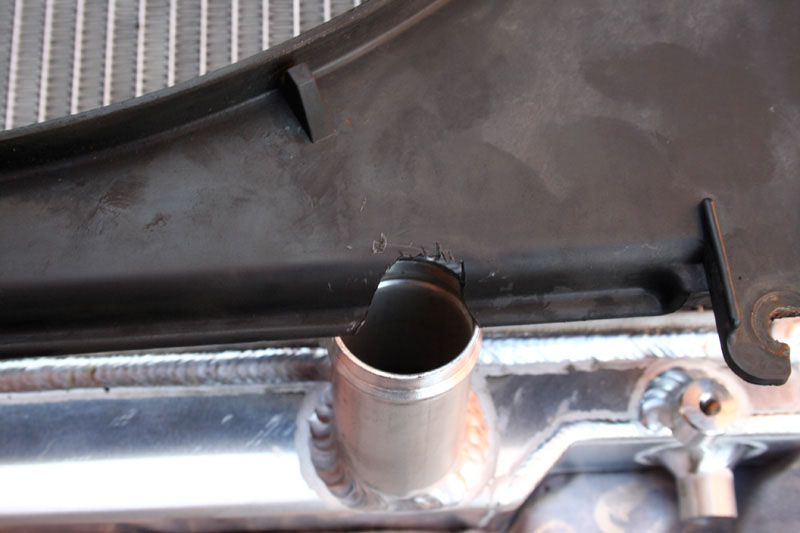

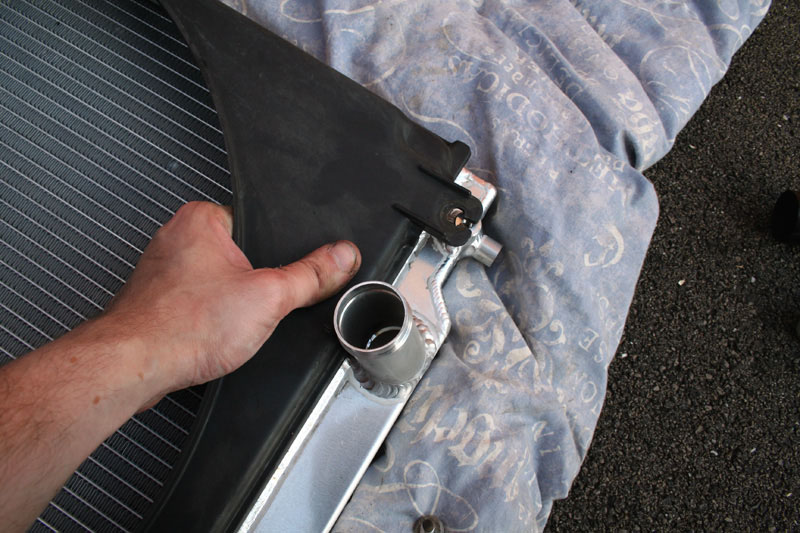

You need to bolt the fan and shroud onto the Fluidyne rad, the rad's a good fit... but it's not stock. The bottom radiator pipe fouls the shroud and I had to snip away a little of the plastic to fit around it.









Ok so that now fitted, and most of the others then all lined up ok too... All except one, which is way out (are US/UK spec radiators different??). Just leave that one.

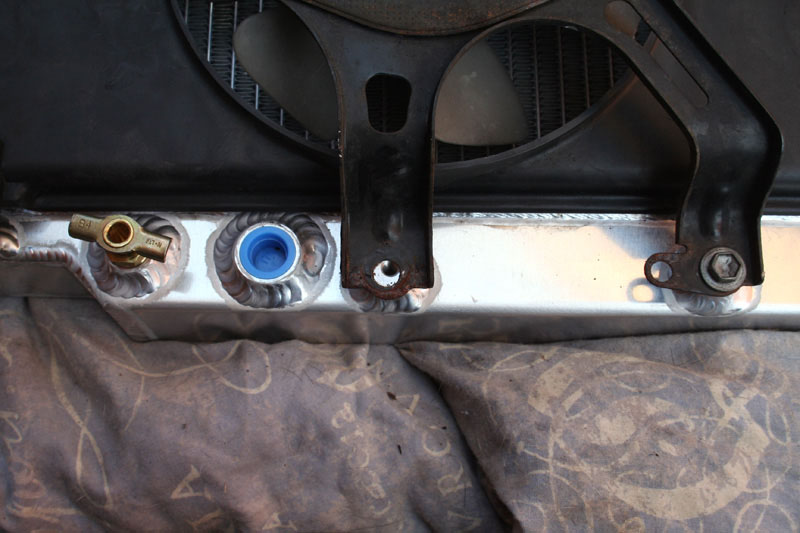

When bolting the aircon fan on, the top bolt fitted ok, and the right hand bottom one too. The left one at the bottom though was again slightly out. I left this one out as well, it's still very secure on there and forcing it to fit was going to cause the fan to foul the shroud.





Ok now you're nearly ready to put it in the car, but you need to remove and refit the temperature sensor from the old rad (I *think* this was a 20mm spanner, can anyone confirm?). Mine was in quite tight. Before you refit it into the new rad, remove the blue plastic cap in the Fluidyne rad, and wrap several layers of plumbers tape around the thread of the temp sensor (I forgot about this and had to use masking tape... it seemed to work, I hope it's ok). If you don't do this you'll find out like I did, once I'd already filled the rad, that it leaks. Make sure it's tightened up well.



Now you're ready to lower it into the car!



Lower it gently into the car being careful not to bash anything.



Once in get underneath and check that the little posts on the bottom of the rad line up correctly with the hole in the middle of the rubber bungs at either side. You will probably need to push down on the rad to push it into the bungs.



Now refit the radiator clamps, the cable clips and the temp sensor and aircon fan plugs, the bottom rad hose, the top rad hose, and the overflow pipe.



Also remember to refit the bottom section of the fan shroud with the clips.

[Thorin]

Refilling the radiator

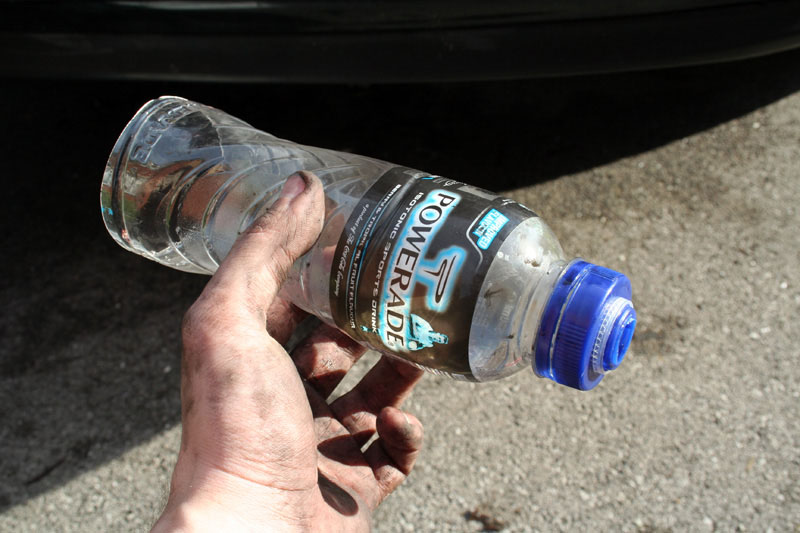

Take your bottle of Powerade and finish off the contents if you haven't already. Use the sharp knife to cut off the bottom and top of the bottle.





This now fits nicely into the top of the radiator





Now fill the rad with a little of the 4Life and check underneath for any leaks. If all is ok, procede to fill the radiator to the top. Next start the engine and stick the heating on full, the level in the rad should drop. Continue to fill the radiator while gently squeezing the top rad hose every now and again (please do not put your fingers in the viscous fan when doing this) until the bubbles stop. My ingenious powerade bottle tip makes this easy to see



When it won't take any more water put the rad cap back on securely. You should still have some 4Life left. Once the car is up to operating temperature, top the expansion tank at the front of the car up to the HOT level.



And that should be it! Double check for leaks, refit the undertray and take it for a drive around the block. Come back, let the engine cool for an hour or so and check/top up the radiator if needed.



Now place plaster on skinned knuckle and sit down and eat your Haribo.

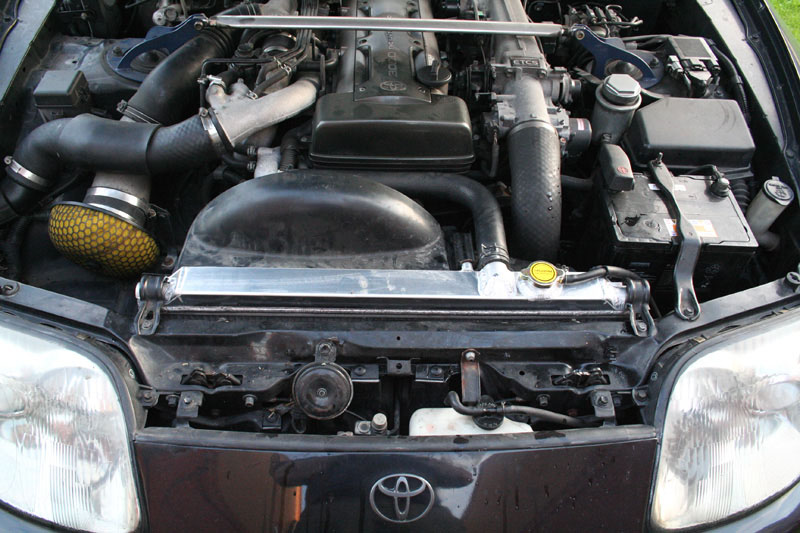

Job done!





Yes I should probably give the engine bay a bit of a clean too.
