Carl Posted April 13, 2009 Share Posted April 13, 2009 I have tried to find the wiring diagram for the Thor fuel cut device. I have searched the threads and found the setup of the actual TRL VFCC device but the wiring diagrams seem to have been removed. Can somebody clarify for me what wire connects were. i gather red to a power source, is the constant or ignition? Black assumably to some earth point? Blue to ECU Yellow/Black wire? Green....not sure on this one. If someone could clarify all these id be gratefull. Carl Quote Link to comment Share on other sites More sharing options...
bigbloodyturbo Posted April 13, 2009 Share Posted April 13, 2009 I did mine last year so I can't remember it too well but I think the blue wire goes to the ecu and the green wire goes back to the map sensor. Quote Link to comment Share on other sites More sharing options...

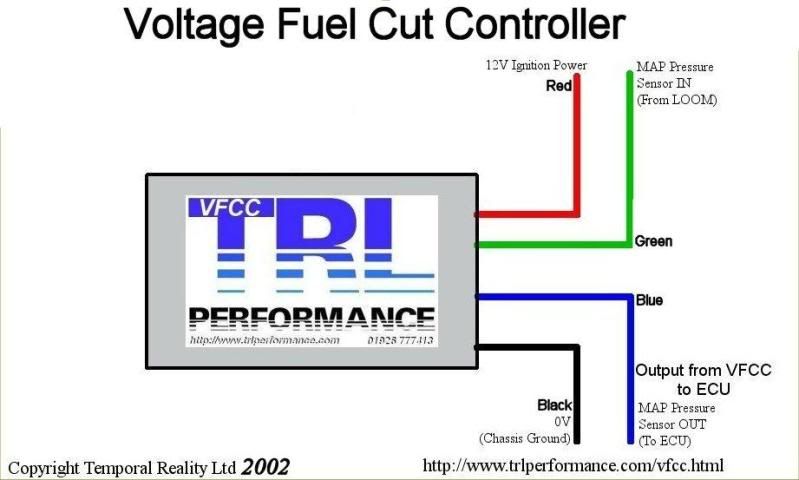

patrikbrunt Posted April 13, 2009 Share Posted April 13, 2009 I had the same problem... found this diagram eventually though Quote Link to comment Share on other sites More sharing options...
Carl Posted April 13, 2009 Author Share Posted April 13, 2009 I had the same problem... found this diagram eventually though http://i22.photobucket.com/albums/b343/patrikbrunt/vfcc2.jpg Thats the one, Cheers. What colour is the map sensor wire wire? Quote Link to comment Share on other sites More sharing options...
bigbloodyturbo Posted April 13, 2009 Share Posted April 13, 2009 Black & yellow Quote Link to comment Share on other sites More sharing options...
Carl Posted April 13, 2009 Author Share Posted April 13, 2009 Black & yellow I thought that was the ECU wire? Quote Link to comment Share on other sites More sharing options...
patrikbrunt Posted April 13, 2009 Share Posted April 13, 2009 should have posted this up at the same time.. yeh from memory is a black/yellow wire, is a bit awkward finding it whilst jammed down in the passenger footwell Quote Link to comment Share on other sites More sharing options...
Carl Posted April 13, 2009 Author Share Posted April 13, 2009 http://i22.photobucket.com/albums/b343/patrikbrunt/vfcc.jpg should have posted this up at the same time.. yeh from memory is a black/yellow wire, is a bit awkward finding it whilst jammed down in the passenger footwell cheers, that will do it. Carl Quote Link to comment Share on other sites More sharing options...
